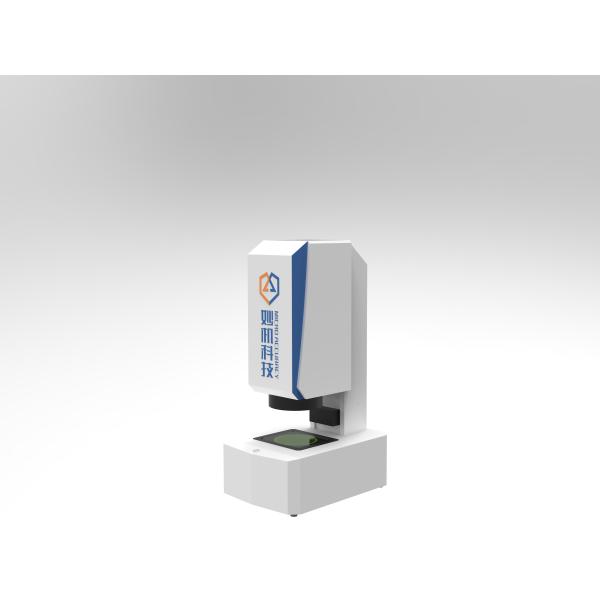

Instant Video Measuring System IPC160, just one click, then get all the measured data
Usage:
IPC series are ideal for measuring distance, radius, angle, arc and other dimensions. It is suitable for precision machinery, electronics, hardware, plastic processing, automotive, mobile glass panels and other industries. The typical work-pieces are stamped, injection molded or laser cut parts.
Features & Advantages:
■ Double telecentric optical lens, large field of view, large depth of field, one-time overall imaging
■ The work-piece can be placed arbitrarily, and the position and direction are automatically recognized. It can be measured by pressing one button.
■ Automatic identification of multiple work-pieces and multiple test elements and automatic measurement for batch test requirements
■ Improve work efficiency and reduce labor costs
■ Automatically record and output measurement reports and perform statistics and analysis
Technical data:
| Model |
IPC160 |
| Telecentric lens |
0.108X
Double telecentric
low distortion
|
| Working distance |
120mm |
| Field of view |
80mm*60mm |
| Measuring accuracy |
4mm |
| Camera |
2/3 inch 5.M HDMI camera (Ethernet) |
| Illumination |
Digital control, automatic memory |
| |
Green LED parallel contour light |
| |
White LED reflective light |
| Measuring software |
Measure X |
| Measuring function |
Point, Line, Circle, Arc, Angle, Distance, Ellipse, O-ring, groove, rectangle, parallelism and so on |
| Auxiliary function |
Intersecting, parallel, vertical, tangent, sub-center |
| Geometric tolerance |
Dimension tolerance, Shape and position tolerance |
| Measurement set number |
Max 99 |
| Test time |
<5S (within 100 test sizes) |
| Data output |
Test data, report, results judgments, etc |
| SPC data manage |
√ |
| CAD import |
√ |
| CAD export |
√ |
| PC |
Brand computer |
| Monitor |
21.5 inch monitor |
| Power supply |
AC100~240V 50/60Hz |
